- Vendor: Bartco
RAD10
Features:
The RAD10 LED luminaire features an integral dimming driver within a minimal 1-1/4” wide by 1-7/16” tall profile. The extruded aluminum fixture is suitable for surface, cable and direct, grid ceiling mounting. A specially engineered drop lens profile produces highly uniform luminance on the three sides and corners. The proprietary integral 120V or 277V RAD10 driver includes 0-10V 10% dimming, powering 90+ CRI LEDs with three output options. Fixtures are available as single units or with plug-and-play connectivity for runs of seamless illumination up to 56’.
Specifications:
Fixture constructed of an extruded aluminum housing, extruded frosted acrylic lens and stamped steel end caps
Model options available for surface, cable suspended and t-grid ceiling mounting
Standard finishes are Architectural White, Matte Black and Environmental Satin Silver powder coat
Available in lengths of 1’-8’ single fixtures and continuous runs
Acrylic lens extruded with proprietary diffusing resin to produce highly uniform luminance on the three sides and corners

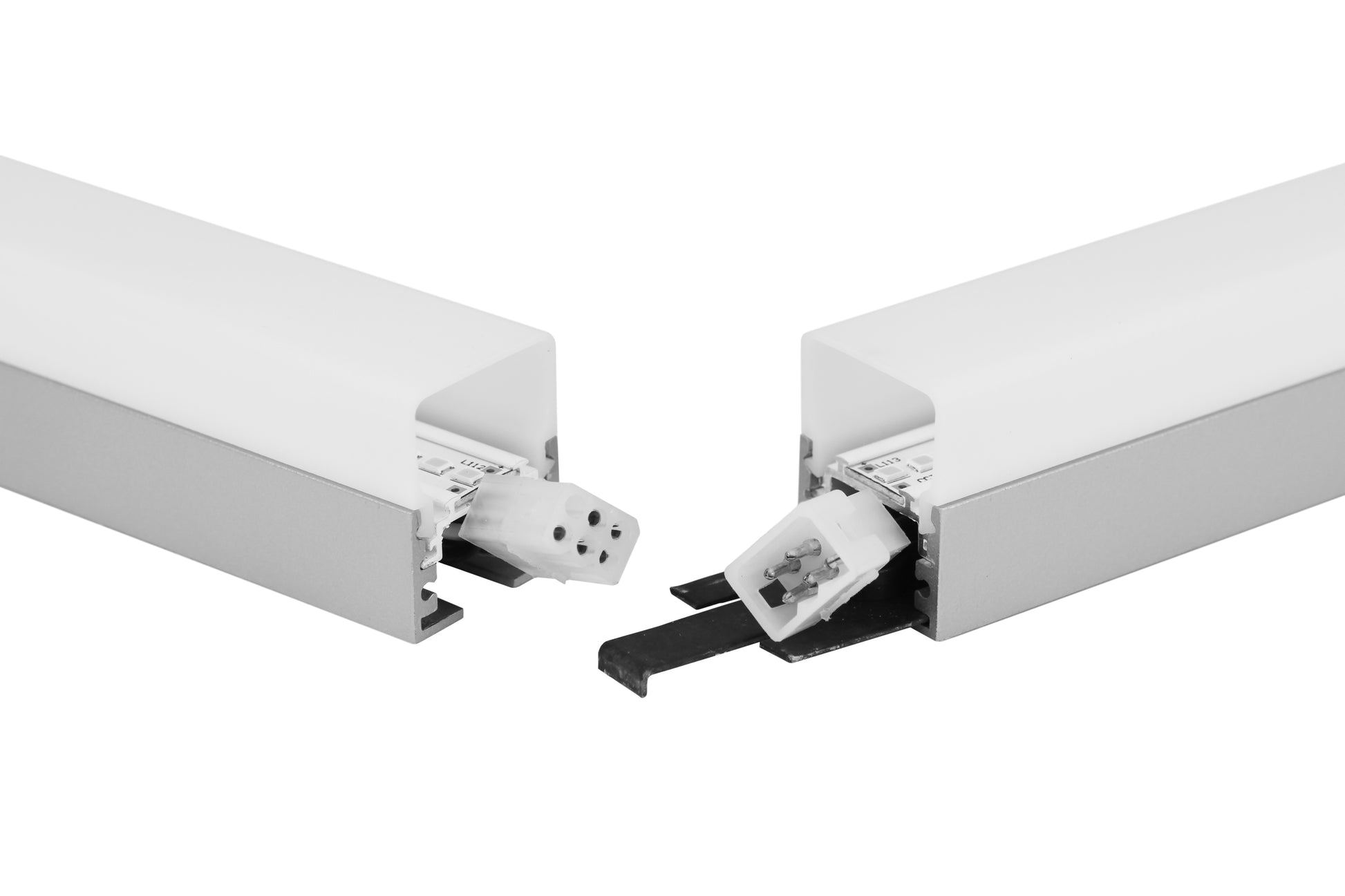

Fixtures can join directly end-to-end for continuous runs of seamless illumination up to a maximum of 56’
Integral 120V or 277V, 0-10V dimming driver dims down to 10% Standard outputs are 410, 605 and 790 lumens per foot
LEDs available in 2700K, 3000K, 3500K and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical
Life: 50,000 hours
L70 Limited five year warranty
Assembled in the U.S.A.
